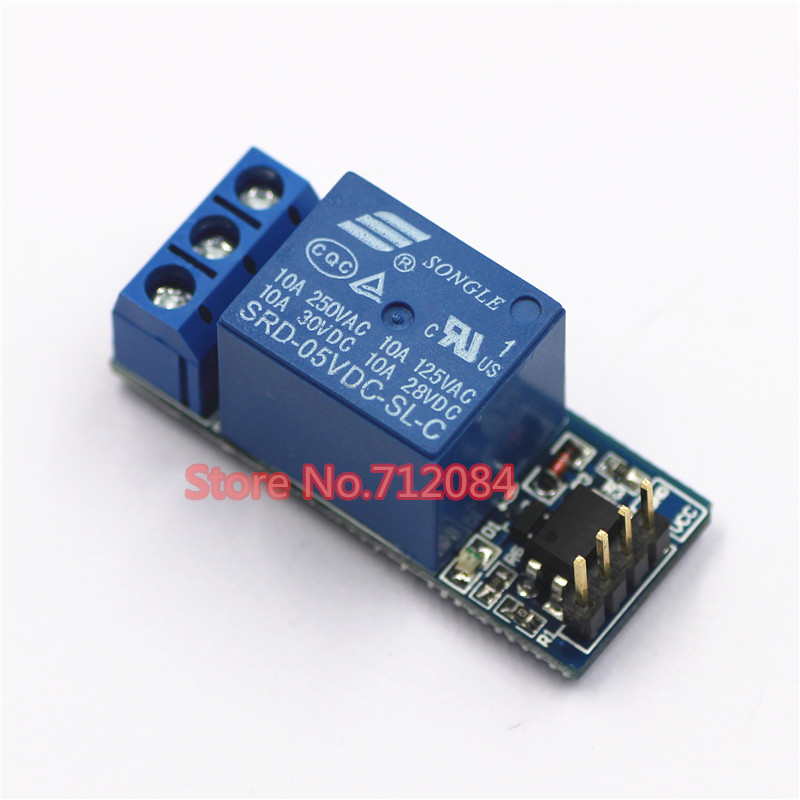

one 1 channel relay module, with optocoupler isolation, fully compatible with 3.3V and 5V Signal, relay control piece

Price:
USD 1.15 / piece    1.28     -10%
MOQ:
440 piece

Shipping Weight: 0.05 kg

Country of origin: China

The estimated delivery time is 10 - 19 days after payment.

Free Shipping for orders over USD 500.00

Payment: Bank transfer

Third party financial regulators will be involved in the transaction process.

Image SKU No. MPN Brand
11076609 - -
Model Number Theory Unit Type Package Size Package Weight
1 channel relay module, with optocoupler isolation one 1 channel relay module piece 15cm x 8cm x 8cm (5.91in x 3.15in x 3.15in) 0.05kg (0.11lb.)
Unit Price Purchase Count
MOQ: 440 piece
USD 1.15 / piece
- +
piece
Please add item quantities to the selected List
Add to Cart Buy now

0piece

USD 0.00

Market rebate 2.00 元

ECVV Industrial Products Mall

0086 755 82468418 support@ecvv.com

Contact Us

  • Product Description
  • Parameter
  • Service Process
  • Guarantee
  • Cumulative Repurchase

Model Number 1 channel relay module, with optocoupler isolation
Theory one 1 channel relay module
Unit Type piece
Package Size 15cm x 8cm x 8cm (5.91in x 3.15in x 3.15in)
Package Weight 0.05kg (0.11lb.)

Parameter

Model Number 1 channel relay module, with optocoupler isolation
Theory one 1 channel relay module
Unit Type piece
Package Size 15cm x 8cm x 8cm (5.91in x 3.15in x 3.15in)
Package Weight 0.05kg (0.11lb.)

--Welcome to our StoreFree freight IC MCU USB EZ FX1 16KB 56-SSOP CY7C64713-56PVXC--



*  Item Description

one 1 channel relay module, with optocoupler isolation, fully compatible with 3.3V and 5V Signal, relay control



Specifications: 40.3 * 16 * 20MM

Supply voltage: 5V

Trigger level: 5V version: 3V-7V trigger

Trigger current: about 5MA (eg 3.3V MCU control, need to have a push-pull output IO)

Control voltage: AC 0-250V or DC 0-30V

Control Current: 0-7A

4
1, can be used microcontroller development board module can be used as home appliance control.

2, is fully compatible with TTL control signal 3.3V and 5V

3, the control of DC or AC signal, you can control 0-250V AC load.

4, there is a normally-open and one normally closed contact.

5, control lights, pull on when the control signal is high, the disconnect does not shine

6. Charge transistor to drive the relay coil.

7, with opto-isolated, anti-interference ability, stable signal.

8, the positioning hole size: 3mm X 6mm diameter holeRole:

  Weak control the strong electricity (low control and high voltage, level signal to control the mechanical signal)

Using method:

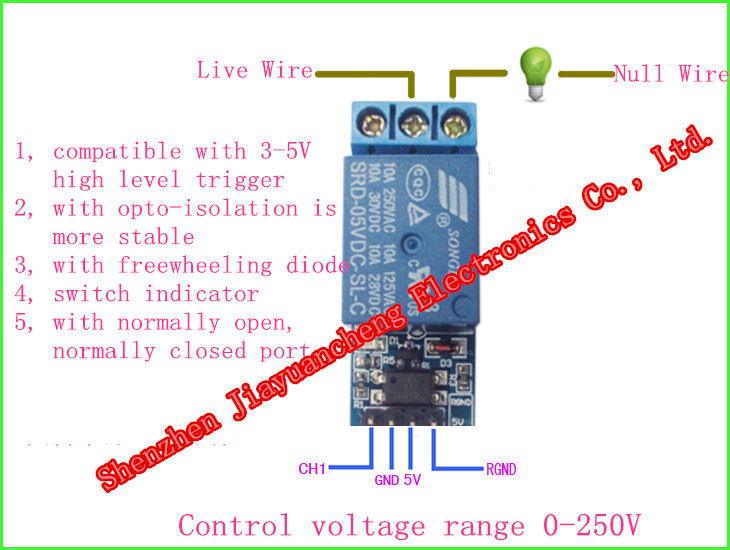

This module high level trigger. In gill label GND RGND 5V, respectively relay 5V power supply anode and cathode, ch1 to port control, high level trigger, namely power supply module, control port receive high level relay on the turn-on.

This purchase link, the supply voltage is 5V. if you need 12V version, please search in the store.
