5v WS2811 12mm Modules Diffused Digital RGB LED pixel string light Individually Addressable round LED module 50pcs/string IP68 lot (100 pieces/lot)

USD 42 / lot    46.67     -10%
20 lot

Shipping Weight: 0.6 kg

Country of origin: China

The estimated delivery time is 10 - 19 days after payment.

Free Shipping for orders over USD 500.00

Payment: Bank transfer

Third party financial regulators will be involved in the transaction process.

Image SKU No. MPN Brand
11076297 - -
Item Type Model Number Brand Name Width Certification Length Height Features Voltage Average Life (hrs) Color Place of Origin Input Voltage Working Life-span Type Unit Type Package Size Package Weight
LED Modules JL-PM-5 JOYLIT 12mm CE,CCC,RoHS 5mm 12mm led pixel 5v 50000 White,Red,Green,Blue,Warm White Guangdong China (Mainland) 5V DC 50000h 12mm lot (100 pieces/lot) 20cm x 20cm x 10cm (7.87in x 7.87in x 3.94in) 0.6kg (1.32lb.)
Unit Price Purchase Count
MOQ: 20 lot
USD 42 / lot
- +
Please add item quantities to the selected List


USD 0.00

Market rebate 2.00 元

ECVV Industrial Products Mall

0086 755 82468418 support@ecvv.com

Contact Us

  • Product Description
  • Parameter
  • Service Process
  • Guarantee
  • Cumulative Repurchase

Item Type LED Modules
Model Number JL-PM-5
Brand Name JOYLIT
Width 12mm
Certification CE,CCC,RoHS
Length 5mm
Height 12mm

More Parameter >


Item Type LED Modules
Model Number JL-PM-5
Brand Name JOYLIT
Width 12mm
Certification CE,CCC,RoHS
Length 5mm
Height 12mm
Features led pixel
Voltage 5v
Average Life (hrs) 50000
Color White,Red,Green,Blue,Warm White
Place of Origin Guangdong China (Mainland)
Input Voltage 5V DC
Working Life-span 50000h
Type 12mm
Unit Type lot (100 pieces/lot)
Package Size 20cm x 20cm x 10cm (7.87in x 7.87in x 3.94in)
Package Weight 0.6kg (1.32lb.)

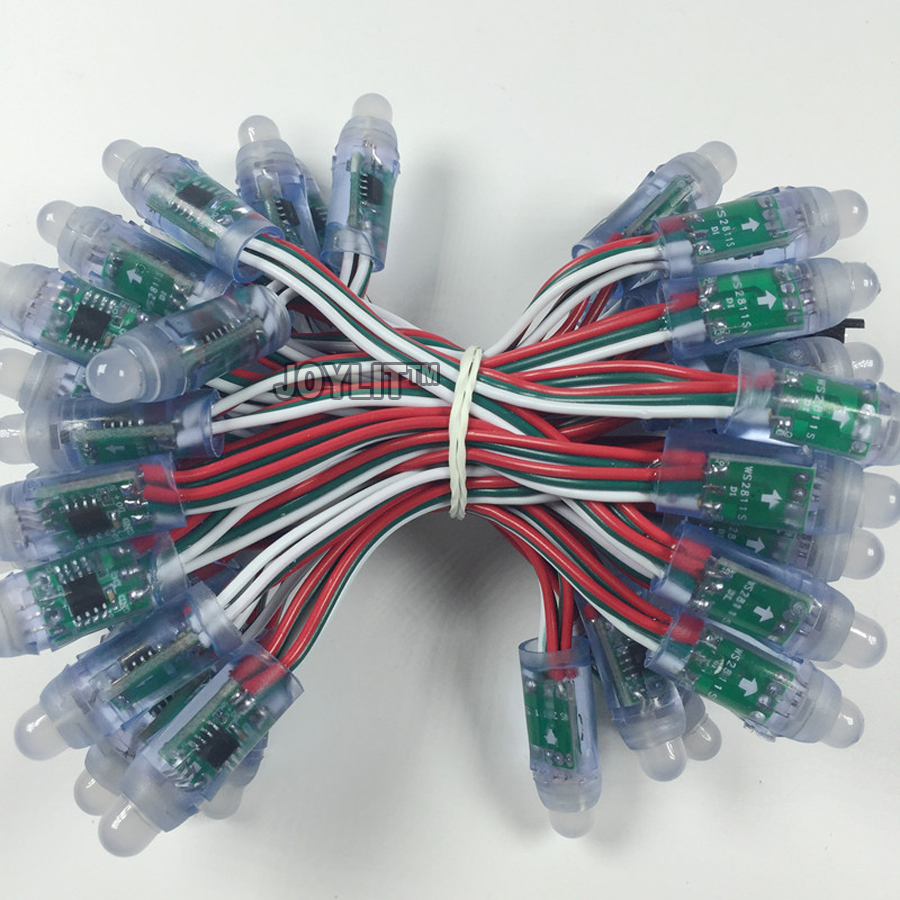

5v WS2811 12mm Modules Diffused Digital RGB LED pixel string light Individually Addressable round LED module 50pcs/string IP68 Waterproof



Working voltage:  DC5V
Working current:  60ma
IP grade:              IP68
Dimension:           12mm

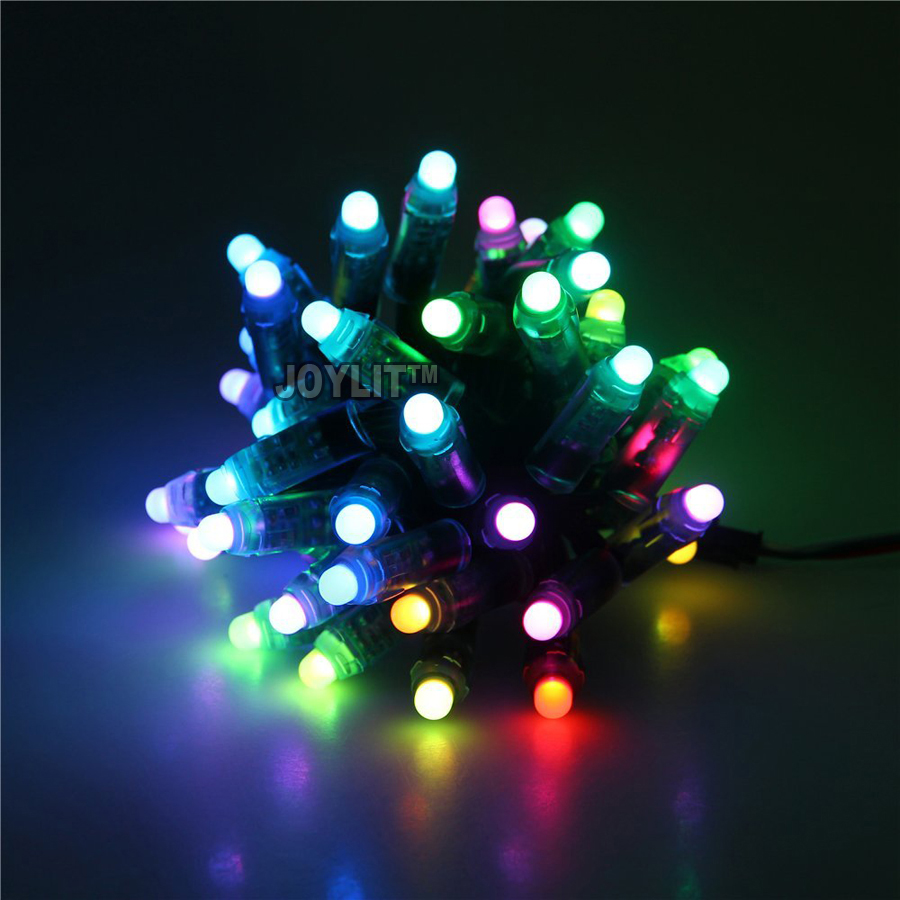

RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a \'dot\' of silicone. The dots are waterproof and rugged. There are four flanges molded in so that you can \'push\' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick. They\'re typically used to make outdoor signs

The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width. The total max brightness of all LEDs is about 1600mcd but with the light more evenly distributed & mixed than a clear LED

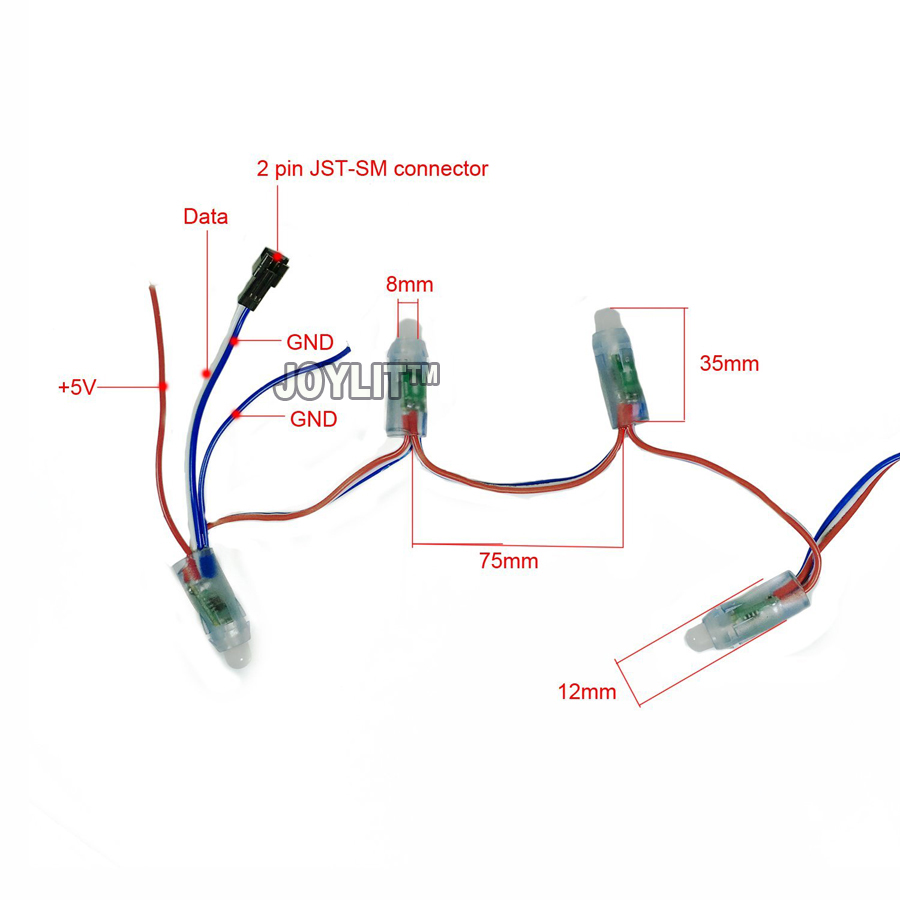

12mm diameter (0.45") 75mm deep (1.5")


50 pieces per strand

These pixels use a WS2811 chip for full 24 bit color

5V power, 60mA maximum per pixel (LED on full white)

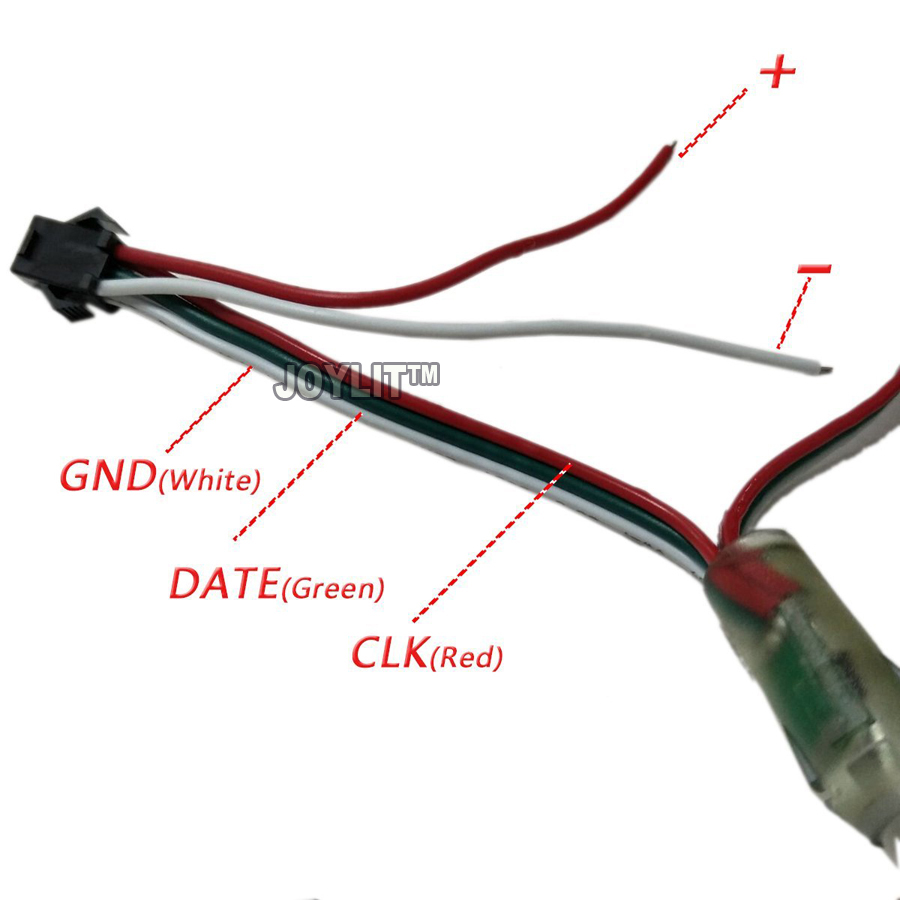

2-pin SPI-like protocol

UCS1903 ws2811 Datasheet for the chip inside each pixel

Brightness: Red = 3.3 Lumens/300 mcd, Green = 10 Lumens/1000 mcd, Blue = 2.7 Lumens/300 mcd (mcd calculation based on full 120 degree beam)



With 50 LEDs, RGB light, ultra bright, with lighting angle of 360.
The 50 LEDs are bunched in series, the gap of each one is 8cm.
Long service life, high luminous efficiency.
Energy saving and enviromental friendly.
Spotlight, no UV and IR radiation.
Does not contain lead, mercury and other pollution elements.
With lead wire to connect with power supply.
Suitable for decoration, advertisement, dance hall, bar, exhibition use.
