ConhisMotor Exclusive Customized Front and Rear Suspension FC-1 Electric Bicycle Mountain eBike 48V 1500W Power Best Selling piece

Price:
USD 3118.80 / piece
MOQ:
10 piece

Shipping Weight: 35 kg

Country of origin: China

The estimated delivery time is 10 - 19 days after payment.

Free Shipping for orders over USD 500.00

Payment: Bank transfer

Third party financial regulators will be involved in the transaction process.

Image SKU No. MPN Brand
11209019 - -
11209020 - -
Color Range per Power Max Speed Certification Brand Name Model Number Motor Frame Material Power Supply Style Foldable Wattage Rated Passenger Capacity Wheel Size Voltage Voltage Motor Power Controller Display Model Battery Battery Charger Speed Tire Fork Model Rear Suspension Unit Type Package Size Package Weight
48V White frame > 60 km >50km/h CE CONHISMOTOR stealth bomber FC-1 Brushless Aluminum Alloy Lithium Battery Luxury Type No > 500w One Seat 24"*3.0 48v 48V 1500W 18 MOSFET 50A KT LCD6 48V 37.5AH Li-ion 5A 60-70km/h, 80-90km/h with pas 24*3.0 DNM USD-8 DNM RCP-3 piece 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in) 35.0kg (77.16lb.)
48V Black frame > 60 km >50km/h CE CONHISMOTOR stealth bomber FC-1 Brushless Aluminum Alloy Lithium Battery Luxury Type No > 500w One Seat 24"*3.0 48v 48V 1500W 18 MOSFET 50A KT LCD6 48V 37.5AH Li-ion 5A 60-70km/h, 80-90km/h with pas 24*3.0 DNM USD-8 DNM RCP-3 piece 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in) 35.0kg (77.16lb.)
Unit Price Purchase Count
MOQ: 10 piece
USD 3118.80 / piece
- +
piece
MOQ: 10 piece
USD 3118.80 / piece
- +
piece
Please add item quantities to the selected List

0piece

USD 0.00

Market rebate 2.00 元

ECVV Industrial Products Mall

0086 755 33941239 support@ecvv.com

Contact Us

  • Product Description
  • Parameter
  • Service Process
  • Guarantee
  • Cumulative Repurchase

Range per Power > 60 km
Max Speed >50km/h
Certification CE
Brand Name CONHISMOTOR
Model Number stealth bomber FC-1
Motor Brushless
Frame Material Aluminum Alloy

More Parameter >

Parameter

Range per Power > 60 km
Max Speed >50km/h
Certification CE
Brand Name CONHISMOTOR
Model Number stealth bomber FC-1
Motor Brushless
Frame Material Aluminum Alloy
Power Supply Lithium Battery
Style Luxury Type
Foldable No
Wattage > 500w
Rated Passenger Capacity One Seat
Wheel Size 24"*3.0
Voltage 48v
Voltage 48V
Motor Power 1500W
Controller 18 MOSFET 50A
Display Model KT LCD6
Battery 48V 37.5AH Li-ion
Battery Charger 5A
Speed 60-70km/h, 80-90km/h with pas
Tire 24*3.0
Fork Model DNM USD-8
Rear Suspension DNM RCP-3
Unit Type piece
Package Size 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
Package Weight 35.0kg (77.16lb.)

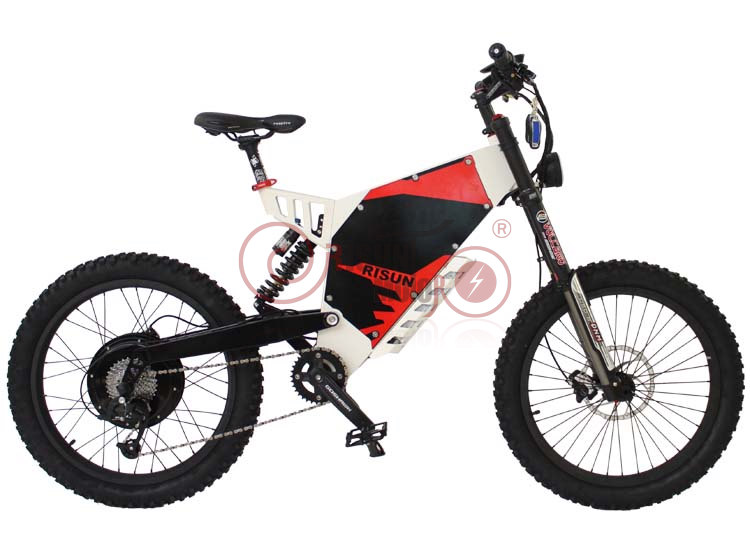

CONHISMOTOR Exclusive 48V 1500W FC-1 Powerful Electric Bicycle/Mountain Ebike +37.5AH Li-ion Battery









Specification

1. Frame: FC-1 FRAME

Material: Steel/2mm

Size: 18"

Color: Black Frame/ Yellow Decal Or White Frame/ Red Decal

2. Front Fork: DNM USD-8 Bike Fork

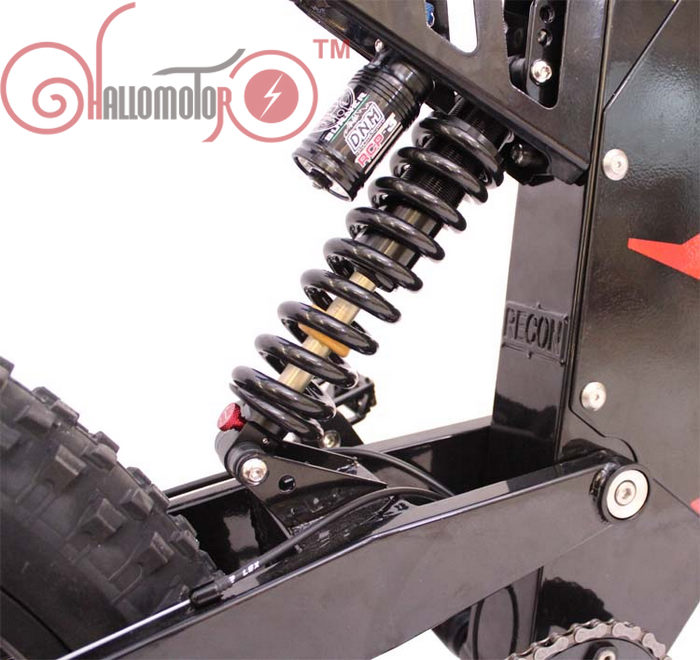

3. Rear Suspension: DNM BURNER-RCP3

4. RISUNMOTOR 34.9mm Aluminium Alloy Seattube Clipper

5. SELLE ROYAL 5130HR Ergonomic Seat with SR BLINKING LIGHT

6. RISUNMOTOR 78*140 Bearing Bottom Bracket

7. PROWHEEL Aluminium Alloy Chainwheel + Cranksets

8.RISUNMOTOR CNC Aluminum Alloy high density bearing pedal, super long life

9.RISUNMOTOR Aluminum Alloy Stand

10. Front wheel:

24x3.0"Front wheel (with 24x3.0" Off-Road Tire or City Tire)

RISUNMOTOR Strong Double-wall Aluminium Alloy Rim
12g Spokes, NOVATEC DH hub (support disc brake)

11.Braking System:
TEKTRO AURIGA E-TUNE (HD-E530) Hydraulic Disc Brake, cut off power
TEKTRO 203mm Front & Rear Disc Brake Rotors

12. Groupset:

MICROSHIFT TS38-8 Rear 8-speed

MICROSHIFT RD-M25 Rear Derailleur

TWKY 8-speed Freewheel

TWLY E8 Chain

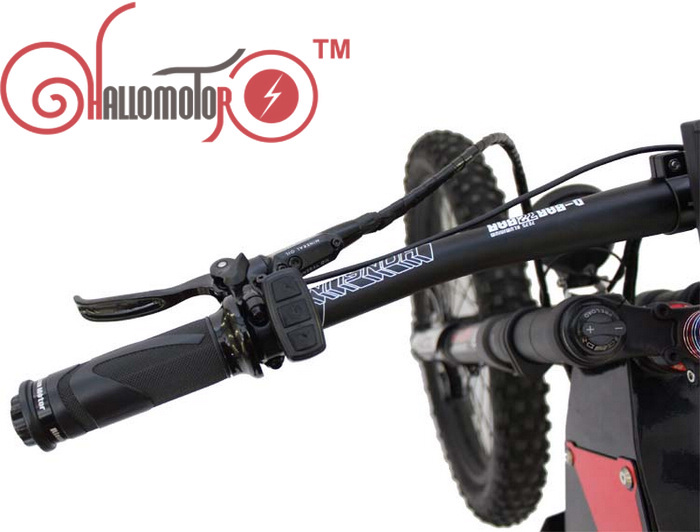

13. HONSUN Handlebar, Stem and Seatpost:

Aluminum Alloy Riser Handlebar (Width: 760mm)

80mm Aluminium Alloy Stem

30.9mm Aluminium Alloy Seatpost

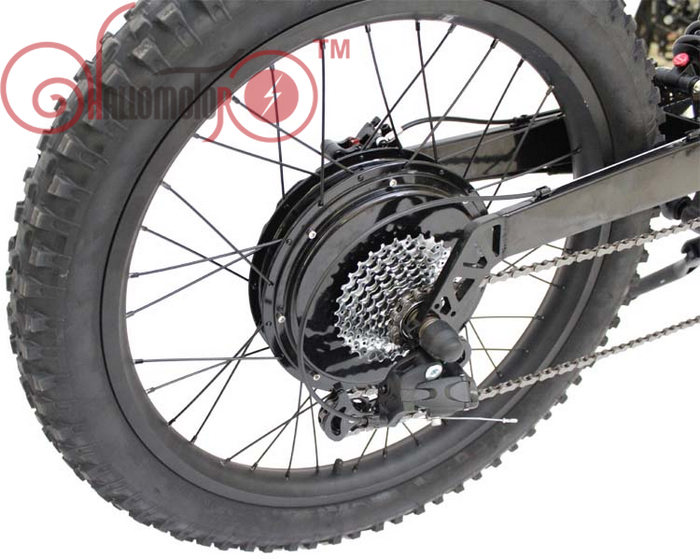

14. 48V 1500W 24x3.0" Rear Wheel:

RISUNMOTOR Strong Double-wall Aluminium Alloy Rims

High Quality 18 MOSFET 50A ±1 Sine Wave Controller (Support Regenerative Function, will charge battery during braking)

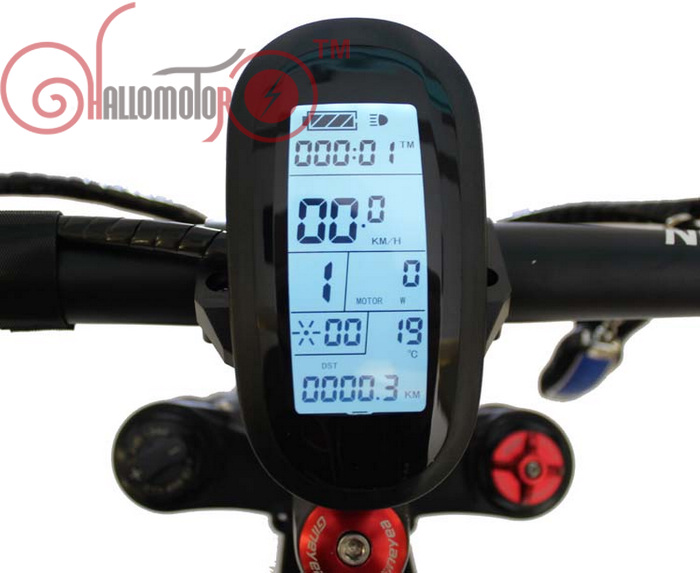

48 LCD6 Display  (with 5-level PAS, speed limit, speed display, Cruise, Regenerative Function)
Throttle Drive / PAS Drive (Torque sensor simulated)
Remote start + Alarm + Motor Lock
Full Speed: about 40-60km/hour

15. Battery:
48V 37.5AH Li-ion Battery  (excellent RisunMotor RM18650P 2500mAh 10A 3C high     discharge rate cell)
Mileage: About 60-70km with pure battery per full charge; about 80-90km with PAS
48V 5A Charger  (Input: 100-240V, Output: 54.6V, Charging Current: 5A,  Charging Time: 10 hours)

16. Product Size:
Ebike Length: 2000mm; Width: 400mm; Height: Seat to Ground 950-1060mm
Net Weight: (without battery): 30kgs
Net Weight: (with battery): 38kgs

17. Packing List:
Carton Size: 167x27x84cm
Gross Weight: 42kgs (with carton)
Wooden Box Size: 169x29x86cm
Gross Weight: 58kgs (with wooden box)






Warranty
Item has one year guarantee for battery and motor. Three months for accessories. Customer's wrong operation is not include in this warranty.




Customs Duty
Import duty/tax is not include in item price.
