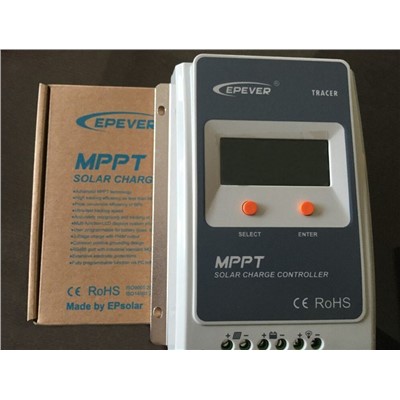

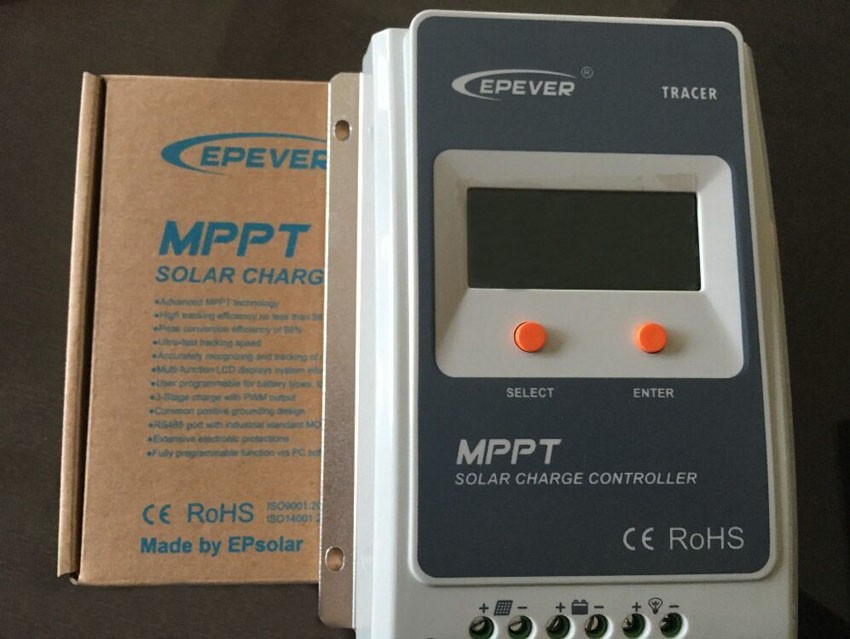

EPEVER 30A MPPT Solar Charge Controller with ebox-BLE-01 Tracer3210A 12V 24V Auto Work 100VDC input with Bluetooth piece

USD 163.20 / piece    181.33     -10%
10 piece

Shipping Weight: 2.1 kg

Country of origin: China

The estimated delivery time is 10 - 19 days after payment.

Free Shipping for orders over USD 500.00

Payment: Bank transfer

Third party financial regulators will be involved in the transaction process.

Image SKU No. MPN Brand
11181603 - -
Application Maximum Current Brand Name is_customized Model Number Rated Voltage Max. solar input voltage Feature Function Certification Communication function Specification Warranty Rated current System voltage Unit Type Package Size Package Weight
Lighting Controller,Solar System Controller,Charger Controller,Solar Working Station,Voltage Controller 30A EPSOLAR Yes Tracer3210A 12v/24v 100V 30amp solar controller builted in LCD charger controler solar mppt 30A CE/RoHS RS485(RJ45 interface) controler solar mppt 30A 12v 24v auto work 2 years 30A 12V/24V auto work piece 28cm x 22cm x 11cm (11.02in x 8.66in x 4.33in) 2.1kg (4.63lb.)
Unit Price Purchase Count
MOQ: 10 piece
USD 163.20 / piece
- +
Please add item quantities to the selected List


USD 0.00

Market rebate 2.00 元

ECVV Industrial Products Mall

0086 755 82468418 support@ecvv.com

Contact Us

  • Product Description
  • Parameter
  • Service Process
  • Guarantee
  • Cumulative Repurchase

Application Lighting Controller,Solar System Controller,Charger Controller,Solar Working Station,Voltage Controller
Maximum Current 30A
Brand Name EPSOLAR
is_customized Yes
Model Number Tracer3210A
Rated Voltage 12v/24v
Max. solar input voltage 100V

More Parameter >


Application Lighting Controller,Solar System Controller,Charger Controller,Solar Working Station,Voltage Controller
Maximum Current 30A
Brand Name EPSOLAR
is_customized Yes
Model Number Tracer3210A
Rated Voltage 12v/24v
Max. solar input voltage 100V
Feature 30amp solar controller builted in LCD
Function charger controler solar mppt 30A
Certification CE/RoHS
Communication function RS485(RJ45 interface)
Specification controler solar mppt 30A 12v 24v auto work
Warranty 2 years
Rated current 30A
System voltage 12V/24V auto work
Unit Type piece
Package Size 28cm x 22cm x 11cm (11.02in x 8.66in x 4.33in)
Package Weight 2.1kg (4.63lb.)




MPPT Solar Charge Controller 30A 12V24V Automatic Transfer Switch LCD Solar Panel Regulator for Solar Power System Battery 3210A

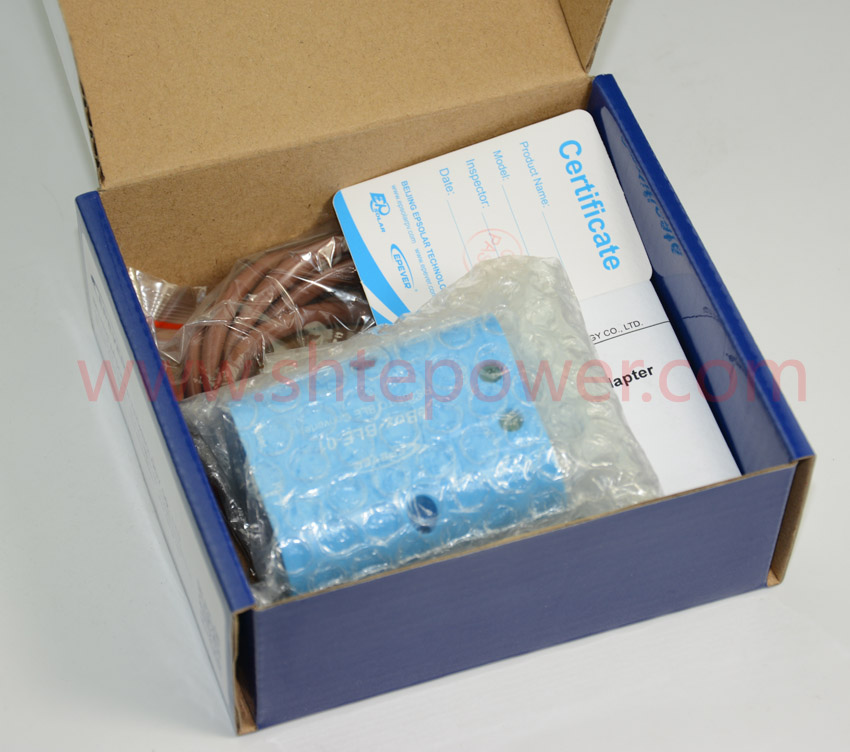

  Package including:

1. 1pcs mppt solar charge controller 30A 100V
2. 1pcs MPPT CONTROLLER User Manual
 3. 1pcs ebox-BLE-01

4. 1pcs ebox-BLE-01 user manual

5. 1pcs Temperature Sensor


Tracer-A series is based on common positive design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical.

  With MPPT control algorithm, in any situation, products of this series can fast and accurately track out the best maximum power point (MPP) of photovoltaic array, in order to obtain the maximum solar energy in time, which remarkably improves energy efficiency. There is dual display function: local LCD panel or remote meter (needs extra MT50). With Modbus communication protocol interface, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, street lighting system, wilderness monitoring system, etc.

  All-round electronic fault self-test function and enhanced electronic protection function could furthest avoid damages on system components resulting from installation errors or system failures.



Advanced Maximum Power Point Tracking (MPPT) technology, wiht efficiency no less than 99.5%

* High quality components, perfecting system performance, with maximum conversion efficiency of 98%.

* Ultra-fast tracking speed and guaranteed tracking efficiency.

* Accurately recognizing and tracking of multiple power points.

* Reliable automatic limit function of maximun PV input power, ensuring no overload under any circumstance.

* Wide MPP operating voltage range.

* 12/24VDC automatically identifying system voltage.

* LCD panel display design, dynamically displaying tool’s operating data and working condition.

* Multiple load control modes: manual control, light ON/OFF, light On+Timer and test mode.

* Support 3 charging preprogram options: Sealed, Gel, Flooded.

* Battery temperature compensation function.

* Real-time energy statistics function.

* With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirement in different situations.

* Availble for network module (eBox--01)with protocol TCP/UDP/SNMP, to realize connection to internet.

* Available for PC monitoring and external display unit connecting like MT50 and so on, realizing real-time data checking and parameters setting.

* Support software upgrade.


Electronic protections:

• PV reverse polarity protection

• PV short circuit protection

• PV over current alarm protection

• Battery overcharge protection

• Battery over discharge protection

• Battery reverse polarity protection

• Load short circuit protection

• Load overload protection




Figure 1-1 Tracer-A Series Characteristics

1 –Mounting hole sizeΦ5

2 –Select Button

3 –Connection for a RTS (Remote Temperature Sensor) to remotely detect battery temperature.

4 –Solar Module Terminals: Connect solar modules.

5 –Battery Terminals: Connect batteries.

6 –Load Terminals: Connect loads.

7 –RS-485 Port (RJ45 interface): Connect with PC or MT50 to monitor or update firmware.

8 –Product shell

9 –Enter Button

10 – LCD


Technical Specification

 Electrical Parameters



Nominal system voltage

12VDC / 24VDC Auto work

Rated charge current

Tracer3210A  30A

Rated discharge current

Tracer3210A   30A

Battery voltage range


Max. solar input voltage


MPPT voltage range

VBAT +2V-90V (Voc. less than 100V)

Max. PV input power

Tracer3210A 390W(12V) 780W(24V)


≤20mA(12V)  ≤16mA(24V)

Temperature compensate coefficient



RS485(RJ45 interface)


• Environmental Parameters




LCD temperature range

-20Cto +70C

Ambient temperature range

-25Cto +45C

Storage temperature range

-35C to +80C

Humidity range





• Mechanical Parameters (Tracer3210A)





228mm x 164mm x 55mm

Mounting dimension



Mounting hole size


Power cable





Annex I Conversion Efficiency Curves

 Illumination Intensity: 1000W/m2   Temp: 25ºC

  Model: Tracer3210A


 Solar Module MPP Voltage(17V,34V,68V) / Nominal System Voltage(12V)

  3012A 12V

Solar Module MPPT Voltage (34V, 68V) / Nominal System Voltage(24V)



Maximum Power Point Tracking Technology


Due to the nonlinear characteristics of solar array, there is a maximum energy output point (Max Power Point) on its curve. Traditional controllers, with switch charging technology and PWM charging technology, can't charge to battery at the maximum power point, so can't harvest the maximum energy available from PV array, but the solar charge controller with Maximum Power Point Tracking (MPPT) Technology can lock on the point to harvest the maximum energy and deliver it to the battery.



The MPPT algorithm of our company continuously compares and adjusts the operating points to attempt to locate the maximum power point of the array. The tracking process is fully automatic and doed not need user adjustment.


As the Figure 1-2, the curve is also the characteristic curve of the array, the MPPT technology will 'boost' the battery charge current through tracking the MPP. Assuming 100% conversion efficiency of the solar system, in that way, the following formula is established:


Normally, the VMp is always higher than VBat. Due to the principle of conservation of energy, the IBat is always higher than IPV. The greater the discrepancy between VMp &VBat, the greater the discrepancy between IPV& IBat. The greater the discrepancy between array and battery, the bigger reduction of the conversion efficiency of the system, thus the controller's conversion efficiency is particularly important in the PV system.


  Figure 1-2 is the maximum power point curve, the shaded area is charging range of traditional solar charge controller (PWM Charging Mode), it can obviously diagnose that the MPPT mode can improve the usage of the solar energy resouce. According to our test, the MPPT controller can raise 20%-30% efficiency compared to the PWM controller. (Value may be fluctuant due to the influence of the ambient circumstance and energy loss.)


             Figure 1-2 Maximum Power Point Curve


 In actual application, as shading from cloud, tree and snow, the panel maybe appear Multi-MPP, but in actually there is only one real Maximum Power Point. As the below Figure 1-3 shows:


                                                               Figure 1-3 Multi-MPPT Curves

If the program works improperly after appearing Multi-MPPT, the system will not work on the real max power point, which may waste most solar energy resources and seriously affect the normal operation of the system. The typical MPPT algorithm, designed by our company, can track the real MPP quickly and accurately, improve the utilization rate of the array and avoid the waste of resources.


Temperatuer Sensor Cable:

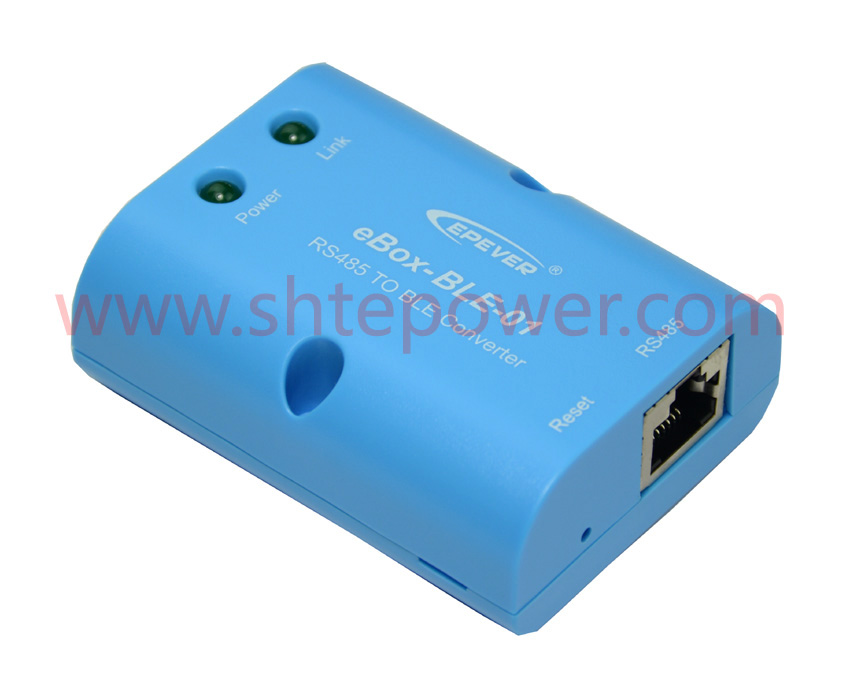

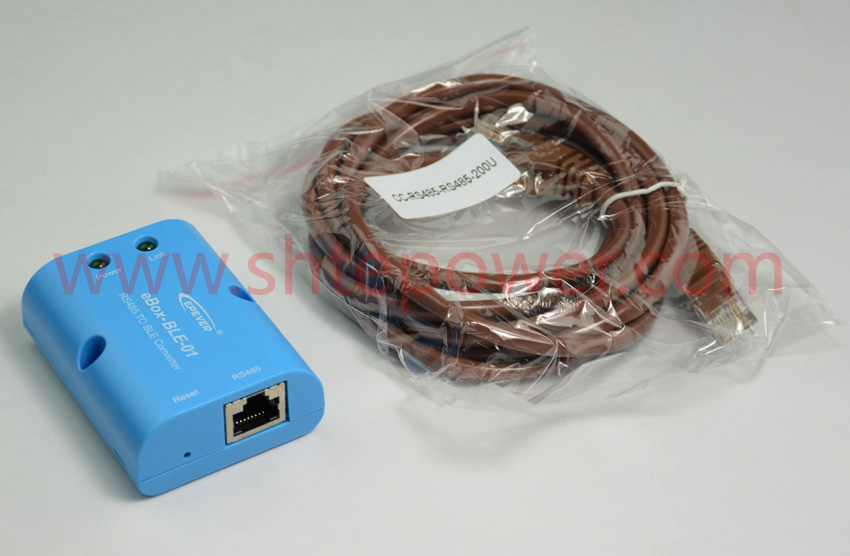

  eBox-BLE-01—RS485 to Bluetooth Adapter

eBox-BLE-01 is a kind of serial adapter which can make our company's solar controller and inverter be with Bluetooth communication function, and carry out wireless monitoring, parameter settings, and etc. for the system only by cooperating with mobile phone APP.  Plug and play, simple and convenient set, it has many excellent features.

Main features:

  Realize wireless monitoring function of solar controller and inverter

  Support mobile phone APP, plug and play, simple and convenient to set

  Use high performance, ultra-low power consumption Bluetooth dedicated chip

  Adopt Bluetooth 4.0 and BLE technology

  Fast communication, strong anti-interference ability

  No need of external power supply

  Communication distance up to 10 m

  Master reset adapter


1. RS485 Interface(RJ45): Used for connecting the solar controller or inverter with RS485 as the communication bus

2. Reset button: Master reset adapter

3. Link indicator: Communication connection indicator

4. Power indicator: Power indicator





   image4210A  4210A-2QQ20151204130957
