Description
Lot of 1 pcs
100% New, Never Used.
Specifications:

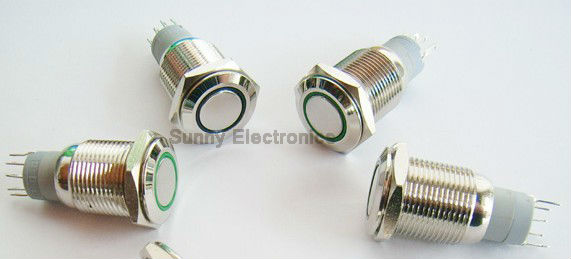

Latching type PUSH BUTTON SWITCH. [ high quality products,CE verified/certificated ]

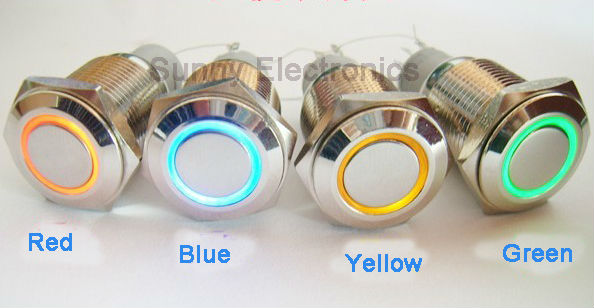

Red, , Green, Yellow, are available for this switch, welcome to contact us if you are interested.
if there is no message left about your color , we will send you blue color ,thank you for your understanding
Color: Blue
1. ON/OFF , latching type.
2. 12VDC [ CE certificated/verified quality ]
3. CUT SIZE: 16mm DIAMETER.
| Mounting Hole | 16mm |
| LED Voltage | 12v |
| LED Colour | Blue |
| Crust Material | Stainless Steel |
| Operation Type | push it-- on, push it again -- off |
| Contact Configuration | 1NO1NC |
| IP Degree | IP67 |
| MAX Switch Rating | 3A/250VAC |

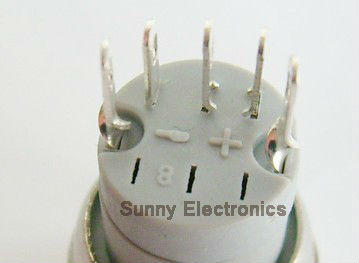

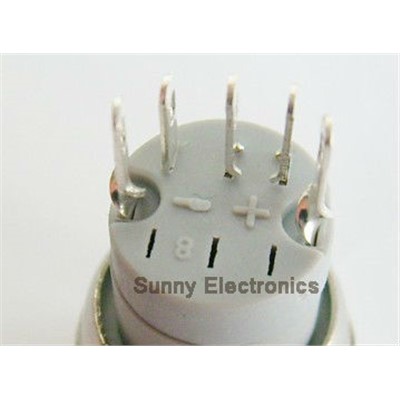

| Terminal Type | 5 Pin Terminal (1.8x0.4mm) |
| Contact Resistance | ≤50MΩ |
| Insulating Resistance | ≥1000MΩ |
| Dielectric Strength | 2000VAC |
| Operating Temp | -20°c_+55°c |
| Mechanical Life | 1 000 000 cycles |
| Electric Life | 50 000ycles |
| LED Life | 40 000Hours |
| Panel Thickness | 1-10mm |
| Torque | 5-14Nm |
| Operating Pressure | 2.5-4N |
| Operating Distance | About 2mm |
| Contact | Silver Alloy |
| Base | PBT |
| ROHS | YES |
Unit :mm
