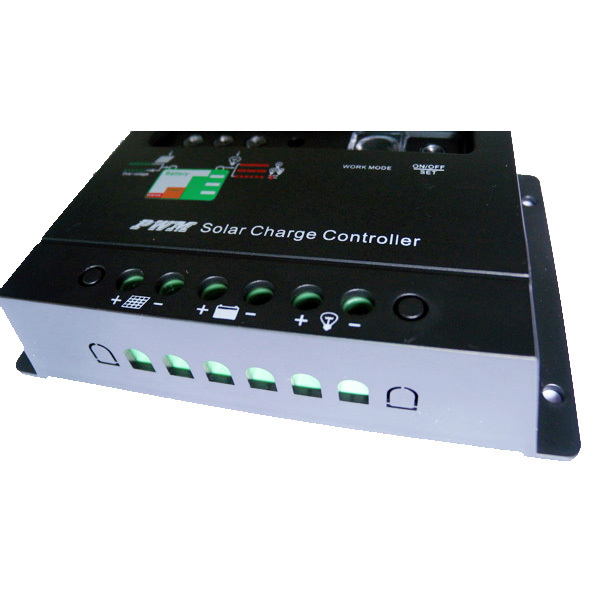

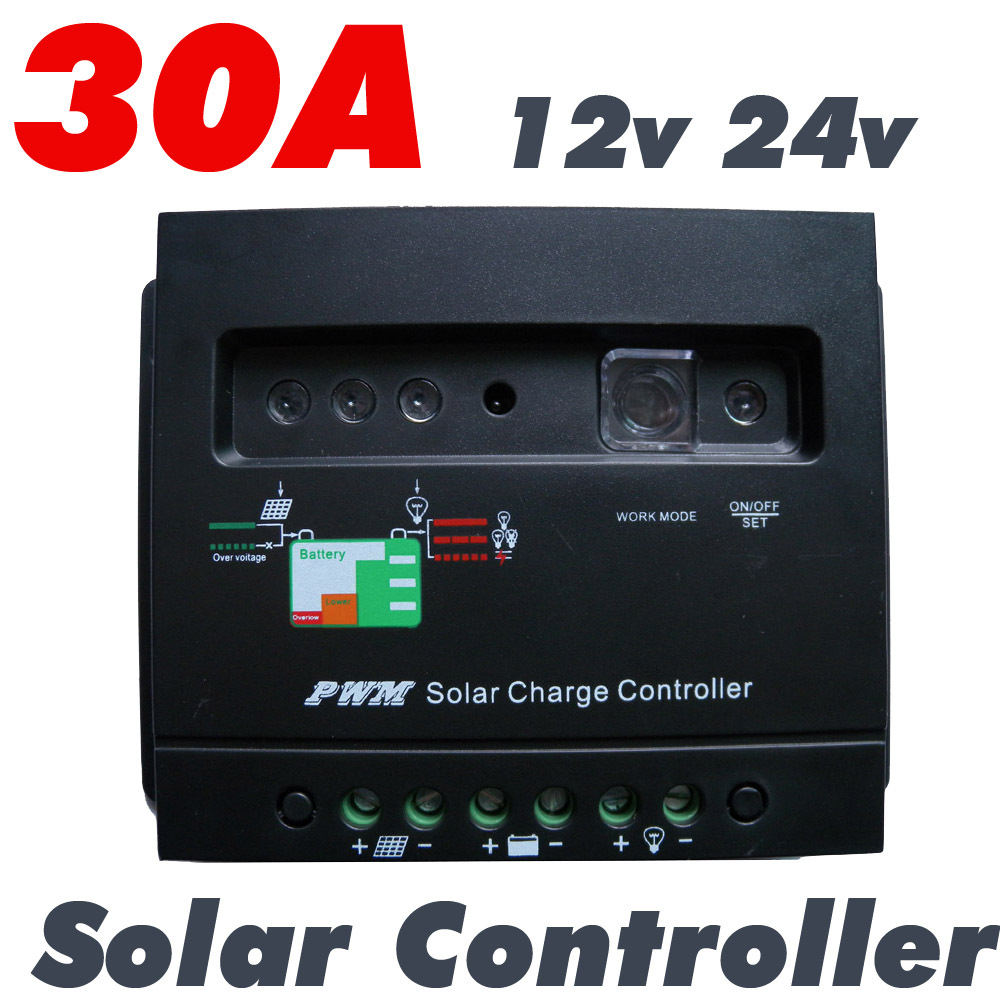

30A 30 Amps Solar Charge Controller with light and timer controller PV battery Charge Regulator piece

Price:
USD 23.76 / piece    26.40     -10%
MOQ:
30 piece

Shipping Weight: 0.26 kg

Country of origin: China

The estimated delivery time is 10 - 19 days after payment.

Free Shipping for orders over USD 500.00

Payment: Bank transfer

Third party financial regulators will be involved in the transaction process.

Image SKU No. MPN Brand
11058469 - -
is_customized Application Maximum Current Brand Name Model Number Rated Voltage Max input Voltage Max Power Control Mode Charge Mode Charge Battery System Useage Display Unit Type Package Size Package Weight
Yes Charger Controller 30Amps Y-SOLAR 30A 12V 24V auto switch 50V 720W,24V;360W,12V Light and Timer Control PWM Lead-acid Battery Off-grid PV system indoor use LED indicator piece 2cm x 2cm x 2cm (0.79in x 0.79in x 0.79in) 0.26kg (0.57lb.)
Unit Price Purchase Count
MOQ: 30 piece
USD 23.76 / piece
- +
piece
Please add item quantities to the selected List
Add to Cart Buy now

0piece

USD 0.00

Market rebate 2.00 元

ECVV Industrial Products Mall

0086 755 82468418 support@ecvv.com

Contact Us

  • Product Description
  • Parameter
  • Service Process
  • Guarantee
  • Cumulative Repurchase

is_customized Yes
Application Charger Controller
Maximum Current 30Amps
Brand Name Y-SOLAR
Model Number 30A
Rated Voltage 12V 24V auto switch
Max input Voltage 50V

More Parameter >

Parameter

is_customized Yes
Application Charger Controller
Maximum Current 30Amps
Brand Name Y-SOLAR
Model Number 30A
Rated Voltage 12V 24V auto switch
Max input Voltage 50V
Max Power 720W,24V;360W,12V
Control Mode Light and Timer Control
Charge Mode PWM
Charge Battery Lead-acid Battery
System Off-grid PV system
Useage indoor use
Display LED indicator
Unit Type piece
Package Size 2cm x 2cm x 2cm (0.79in x 0.79in x 0.79in)
Package Weight 0.26kg (0.57lb.)

This items is just for off-grid Solar PV system.
For 12V PV system: 21V for Max input,360W Solar Panel.
For 24V PV system :42V for Max input,720W Solar Panel.
Brand New PWM 20A Solar Charge Controller Panel Regulator 12V 24V The Solar lighting Controller for solar system with automatic lighting control and time functions. The Solar Controller is designed with a microcontroller for automatic lighting control functions. Proven reliability Precise lighting controller PWM battery charging Microcontroller digital accuracy Fully automatic operation 16 field adjustable lighting control options Manual test capability Detects day and night using the PV array Suitable for all 12V /24V lamps Suitable for Seal lead acid battery Temperature compensation

Features:
Microcontroller digital accuracy
PWM Charge mode
State of charge (SOC)
Temperature compensation with external temperature sensor
Detects day and night using the PV array
Big terminals and big distance between terminals

Functions:
Short circuit protection
Reverse polarity protection
Reverse current protection at night
Over charging or discharging protection
Over load protection

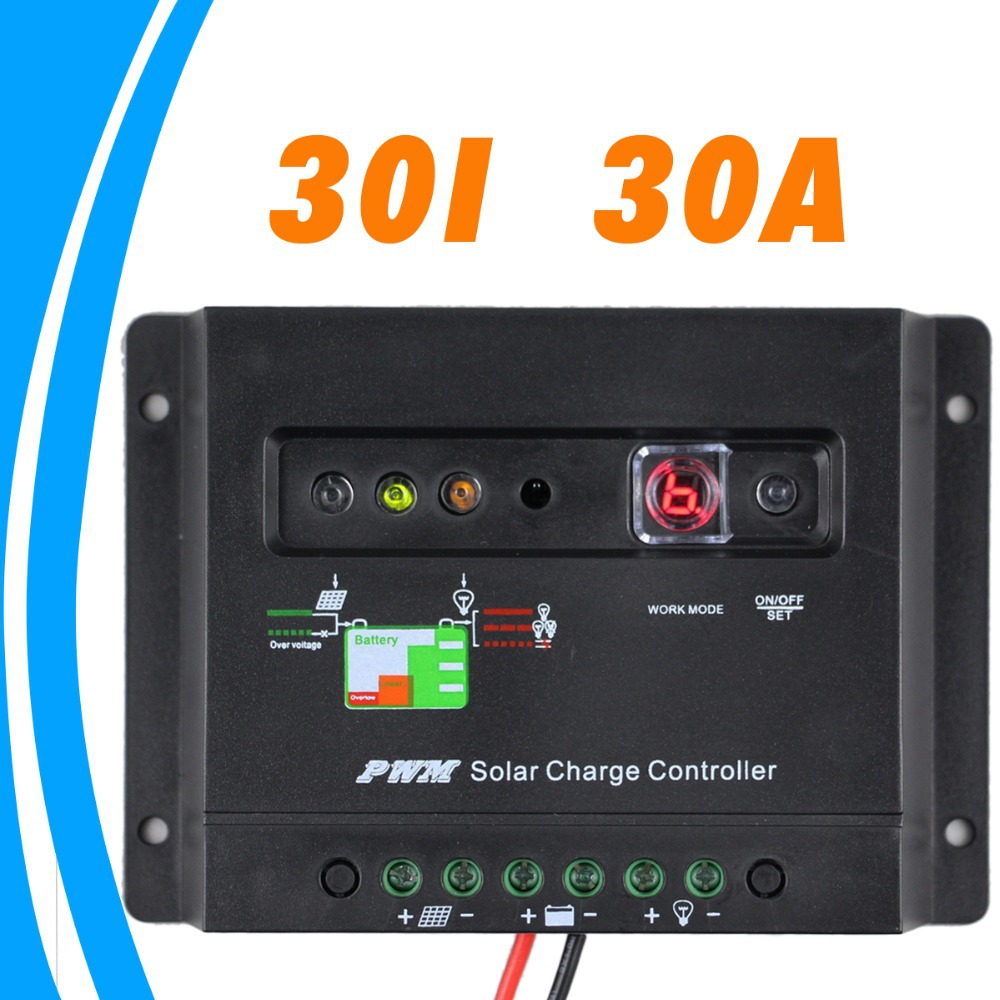

30I Data Sheet:
30I series: 12 VOLT or 12/24 VOLT auto work, 30 AMPS (for PV and load)
Equalization voltage: 14.8 Volt
Boost voltage: 14.4 Volt
Float voltage: 13.6 Volt
Low voltage disconnect (LVD) 11.10 Volt
Low voltages reconnect (LVR): 12.6 Volt
Temperature compensation: -30mv/degree/12V
Self-consumption: 6mA maximum
Terminals: for wire sizes to 2.5mm^2
Temperature: -35degree to +55degree

Display:
4 LED indicators
PV: Green –charging
Battery: Green-Yellow-Red
Load: Red –output on
Red slow flashing& blinking shows mistakes
The fourth double LED shows timers
LED indicator:
Solar Panel LED:
Green ON when solar is charging Battery.
Green blink when the syetem over voltage
Battery LED:
Green ON when battery level in the right range
Green Slowly flashing when battery level full
Yellow ON when battery level low
RED ON when loads cut off.
LOAD LED:
RED ON when the output is on
RED slowly flashing when it`s over load
(the load amps is 1.24 times of rated current for 60 seconds,or the load amps is 1.5 times of rated current for 5 seconds.)
RED blink when the load is short -circuit.

This controller has Light and Timer control Function
Light control:When daylight starts to occur then the light source goes off. Meanwhile the Solar Panels will charge the batteries. when there is no sunlight the garden light will switch on.
Time control:There is an eight hours time control,that means it will go off when the Lights automatically switch off after 0-15 hours.
