Shipping Weight: 9.8 kg
Country of origin: China
The estimated delivery time is 10 - 19 days after payment.
Free Shipping for orders over USD 500.00
Payment:
Bank transfer
Third party financial regulators will be involved in the transaction process.
| Image | SKU No. | MPN | Brand |
|---|---|---|---|
|
10994372 | - | - |
| Output Power | Phase | Type | Efficiency | Frequency | AC Voltage | Certification | Model Number | Protect Feature | Unit Type | Package Size | Package Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.4kw | Three-phase | Servo Motor | IE 4 | 50KHz | 208-230 / 240 V | CCC,CE | ACSM130-G07730LZB | conventional | piece | 40cm x 30cm x 30cm (15.75in x 11.81in x 11.81in) | 9.8kg (21.61lb.) |
| Unit Price | Purchase Count |
|---|---|
|
MOQ: 10 piece USD 264 / piece |
piece |
0piece
USD 0.00
Market rebate 2.00 元
0086 755 82468418 support@ecvv.com
Contact Us
| Output Power | 2.4kw |
|---|---|
| Phase | Three-phase |
| Type | Servo Motor |
| Efficiency | IE 4 |
| Frequency | 50KHz |
| AC Voltage | 208-230 / 240 V |
| Certification | CCC,CE |
| Output Power | 2.4kw |
|---|---|
| Phase | Three-phase |
| Type | Servo Motor |
| Efficiency | IE 4 |
| Frequency | 50KHz |
| AC Voltage | 208-230 / 240 V |
| Certification | CCC,CE |
| Model Number | ACSM130-G07730LZB |
| Protect Feature | conventional |
| Unit Type | piece |
| Package Size | 40cm x 30cm x 30cm (15.75in x 11.81in x 11.81in) |
| Package Weight | 9.8kg (21.61lb.) |

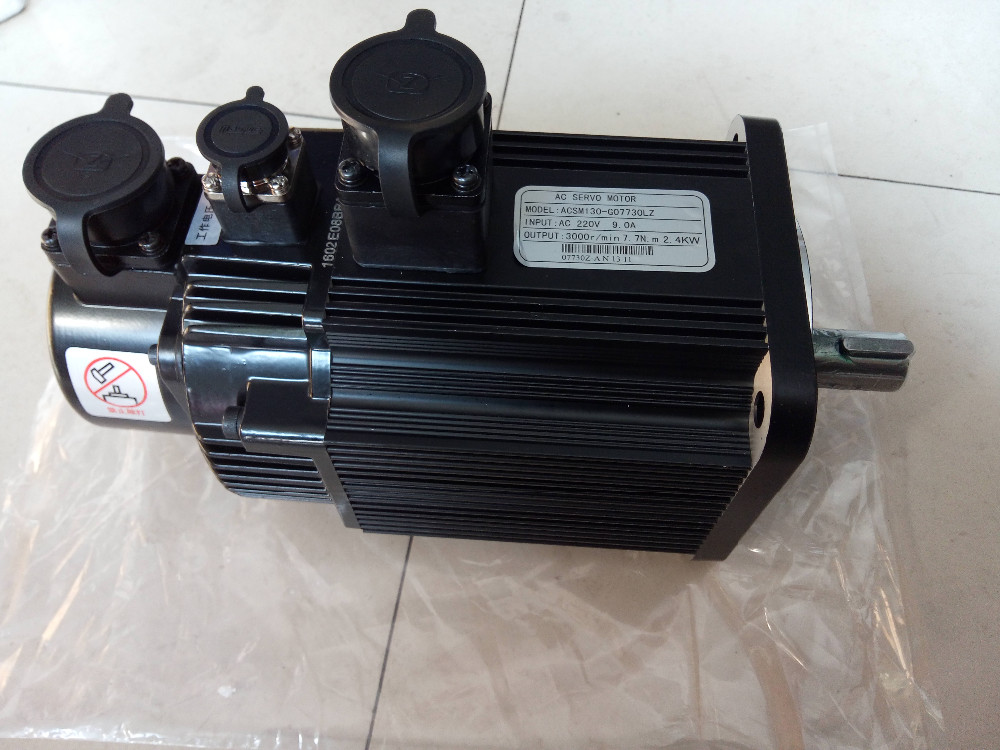

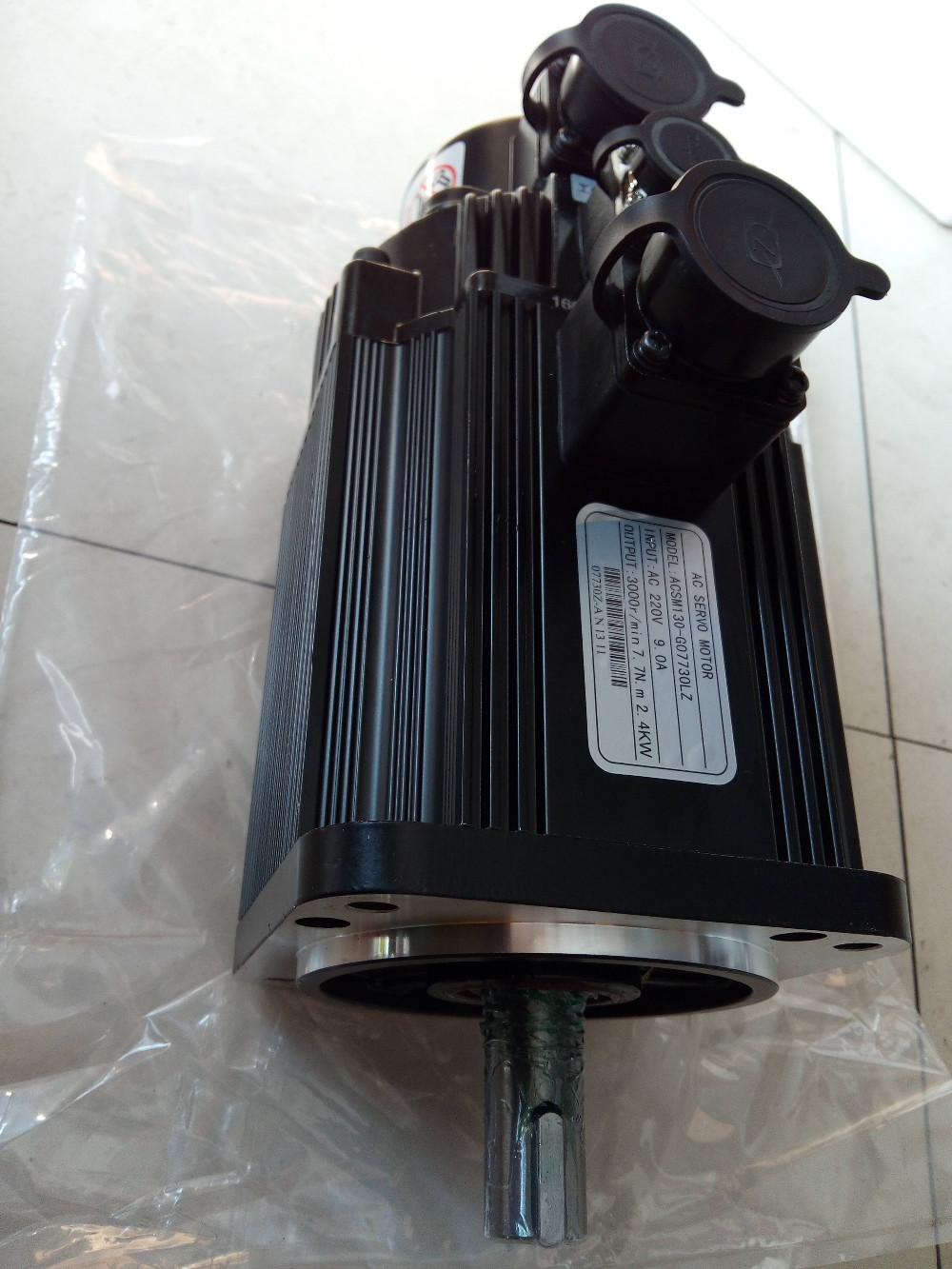

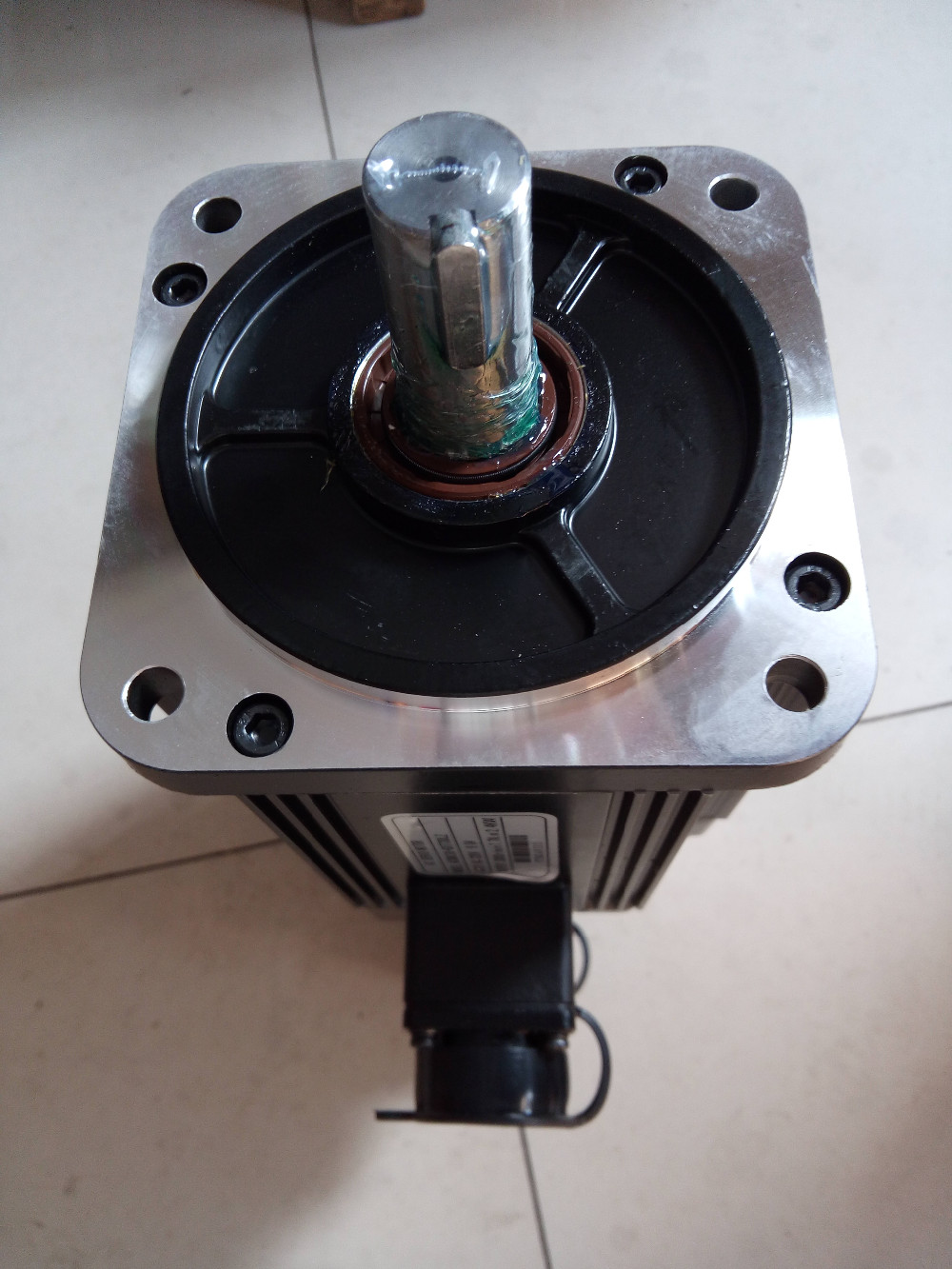

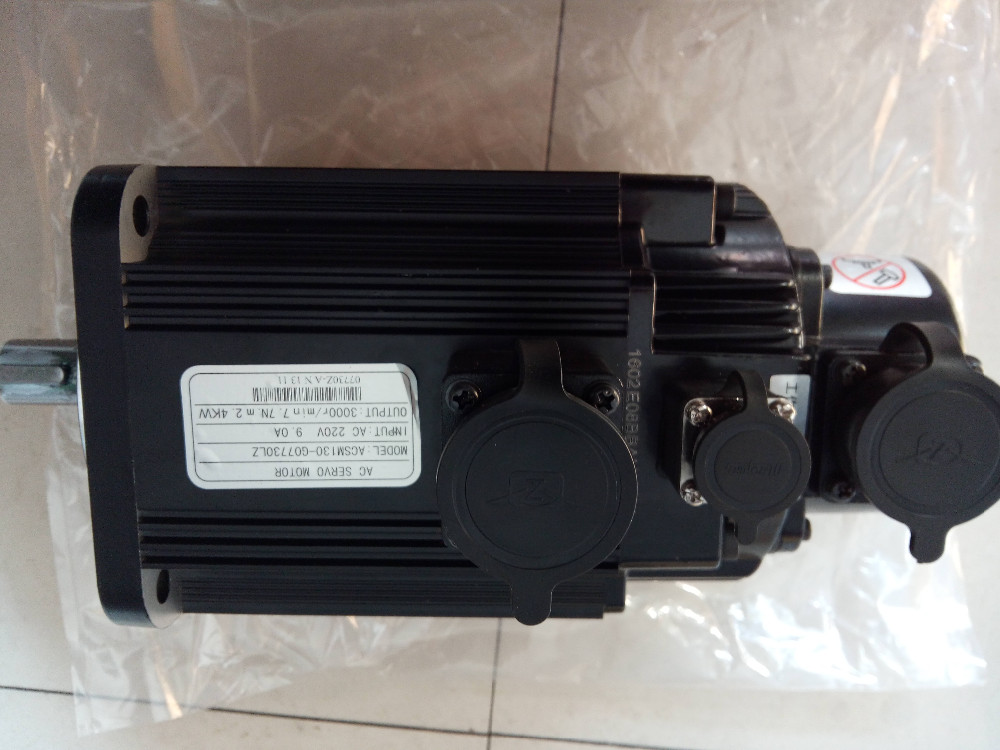

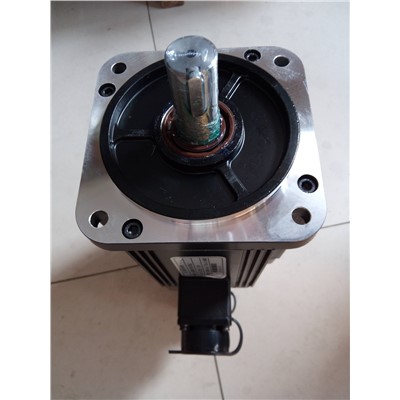

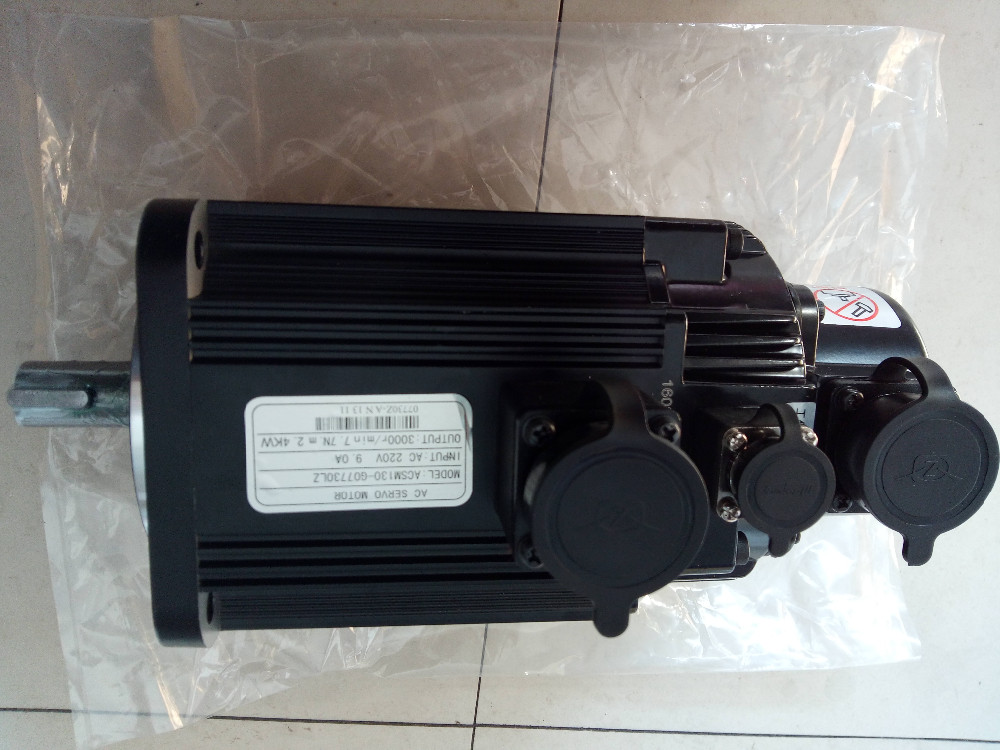

Model:ACSM130-G07730LZB
Purpose: automation equipment
Product certification: iso9001
1 using tamagawa encoder
2 Use waterproof Air plug
3 Rare earth permanent magnet SH - T,Each magnetic flux, are not more than 1, stability,In 150 degrees high temperature quenching for two hours, three times repeatedly,Then test the permanent magnet material not less than 3%
High control precision
Stepper motor step away from the Angle of general of 1.8. two-phase or 0.72.
The precision of the ac servo motor depends on the accuracy of motor encoder
With servo motor as an example, the encoder for l6,Drive each receive 2 = 65 536 pulses,Motor rotation a circle, the pulse equivalent to 360 '/ 65 536 = 0005;
And implements the location of the closed-loop control,Fundamentally overcome the out-of-step problem of step motor.
Moment of good frequency characteristics
The output of the stepper motor torque vary with the increase of rotational speed drops,And at a high speed when they fell sharply, its work speed in dozens to hundreds of rotations per minute RPM .And ac servo motor in the rated speed usually 2000 r / 3000 r/min or rain Less than for constant torque output,At the rated speed to E for constant power output.
With overload capacity
When the stepper motor no-load accelerate from 0 to a few hundred revolutions per minute,Need 200-400 ms:The acceleration of ac servo motor performance is better.
