| Type | Brand Name | AC Voltage | Model Number | Phase | Output Power | Certification | Frequency | Efficiency | Protect Feature | Rated speed | Rated torque | Encoder line | Unit Type | Package Size | Package Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Servo Motor | NEWKYE N | 208-230 / 240 V | 60ST-IM00630 | Three-phase | 0.2KW | CE | 50HZ | IE 2 | Drip-proof | 3000rpm | 0.637N.m | 2500ppr | piece | 25cm x 20cm x 20cm (9.84in x 7.87in x 7.87in) | 1.5kg (3.31lb.) |
| Unit Price | Purchase Count |
|---|---|
|
MOQ: 10 piece USD 134.40 / piece |
piece |
0piece
USD 0.00
Market rebate 2.00 元
0086 755 82468418 support@ecvv.com
Contact Us
| Type | Servo Motor |
|---|---|
| Brand Name | NEWKYE N |
| AC Voltage | 208-230 / 240 V |
| Model Number | 60ST-IM00630 |
| Phase | Three-phase |
| Output Power | 0.2KW |
| Certification | CE |
| Type | Servo Motor |
|---|---|
| Brand Name | NEWKYE N |
| AC Voltage | 208-230 / 240 V |
| Model Number | 60ST-IM00630 |
| Phase | Three-phase |
| Output Power | 0.2KW |
| Certification | CE |
| Frequency | 50HZ |
| Efficiency | IE 2 |
| Protect Feature | Drip-proof |
| Rated speed | 3000rpm |
| Rated torque | 0.637N.m |
| Encoder line | 2500ppr |
| Unit Type | piece |
| Package Size | 25cm x 20cm x 20cm (9.84in x 7.87in x 7.87in) |
| Package Weight | 1.5kg (3.31lb.) |
Note:
In order to improve the speed and efficiency,better service to buyers, please specify the declared value of the invoice, in order to avoid unnecessary trouble at the customs.Russian customer please tell us your full name; Brazil customers please tell us your CPF, otherwise will affect the time of delivery! If you have bulk purchase, pls contact us!If you have any question, pls feel free to contact us. whatsapp:+8613957666891, skype:live:alisa6891
Thank you for your cooperation.
Taizhou Newkye Electronics CO.,LTD

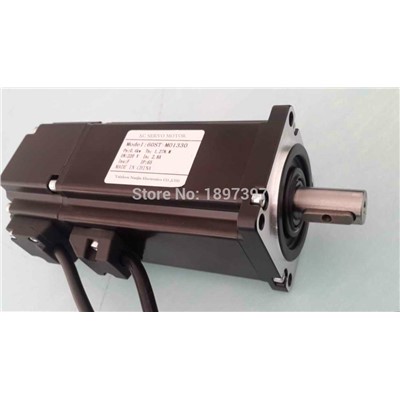

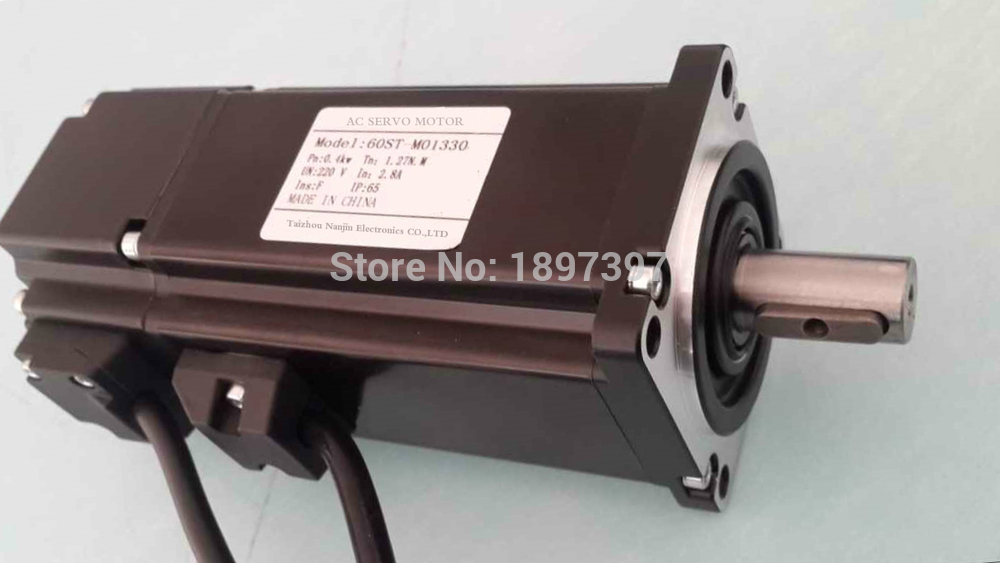

200w 0.637N.m 3000rpm servo motor for embroidery machine
Frame size:60mm
Motor winding plug (4 pin docking):
| Winding leads | U | V | W | PE |
| Socket Number | 1 | 2 | 3 | 4 |
Feedback element socket:
Provincial line encoder socket (9 pin docking)
| Signal leads | 5V | GND | A+ | B+ | Z+ | A- | B- | Z- | PE |
| Socket Number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 1 |
Photoelectric encoder socket (15 pin docking)
| Signal leads | 5V | 0V | B+ | Z- | U+ | Z+ | U- | A+ | V+ | W+ | V- | A- | B- | W- | PE |
| Socket Number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 |
Absolute encoder socket (9 pin docking)
| Signal leads | GND | VB | SD- | 0V | SD+ | +5V |
|
| PE |
| Socket Number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 1 |
Model named
Motor model consists of frame,product name code,performance parameter code,etc.
60 ST - IM H 013 30 Z1
(1) (2) (3) (4) (5) (6) (7)
(1):Frame size: 60mm
(2):AC permanent magnet synchronous servo motor
(3):Feedback element code (IM representatives photoelectric encoder, PM representatives province line encoder, AM representatives absolute encoder)
(4):Adapter driver operating voltage(VAC):380 (Empty representatives 220VAC)
(5):Rated torque:three-digit×0.1N.m
(6):Rated speed:two-digit×100rpm
(7):With electromagnetic brake (Z2 representatives permanent magnet brake, Empty representatives without brake.
60 series servo motor parameters
Specifications:
| Motor model | 60ST-IM00630 | 60ST-IM01330 | 60ST-IM01930 |
| Rated power(Kw) | 0.2 | 0.4 | 0.6 |
| Rated voltage(V) | 220 | 220 | 220 |
| Rated current(A) | 1.2 | 2.8 | 3.5 |
| Rated speed(rpm) | 3000 | 3000 | 3000 |
| Rated torque(N.m) | 0.637 | 1.27 | 1.91 |
| Peak torque(N.m) | 1.91 | 3.9 | 5.73 |
| Voltage constant (V/1000r/min) | 30.9 | 29.6 | 34 |
| Torque coefficient (N.m/A) | 0.53 | 0.45 | 0.55 |
| Rotor inertia(kg.m2) | 0.175×10-4 | 0.29×10-4 | 0.39×10-4 |
| Line-line Resistance(Ω) | 6.18 | 2.35 | 1.93 |
| Line-line Inductance(mH) | 29.3 | 14.5 | 10.7 |
| Electrical time constant (ms) | 4.74 | 6.17 | 5.5 |
| Weight(kg) | 1.16 | 1.63 | 2.07 |
| Encoder line number(PPR) | 2500 | ||
| Insulation class | Class F | ||
| Safety class | IP65 | ||
| Environment | Temperature:-20~+50 Humidity:<90%(non-condensing conditions) | ||
Note:If other special requirements are needed, pls contact our technical department.
Installation precaution:
1. Install/disassemble to the motor shaft end, do not hit shaft hard, to prevent to damage the encoder in the other side of motor shaft.
2. Try to prevent the axle base vibration, to prevent bearing damaged.

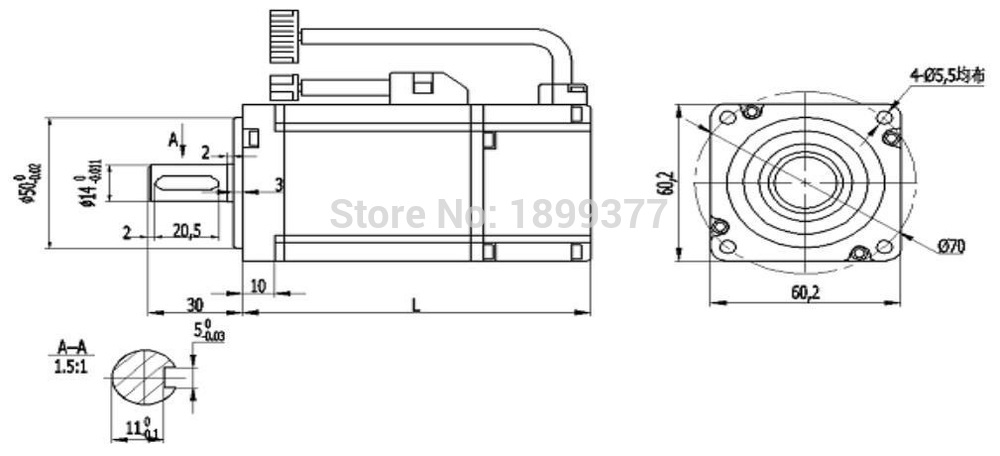

Installation Dimension: unit=mm
| Model | 60ST-IM00630 | 60ST-IM01330 | 60ST-IM01930 |
| Without brake size(L) | 116 | 141 | 169 |
| With brake size(L) | 164 | 189 | 217 |
The above is a standard installation dimensions, it can be changed according to customer’s requirements.
