Product Description

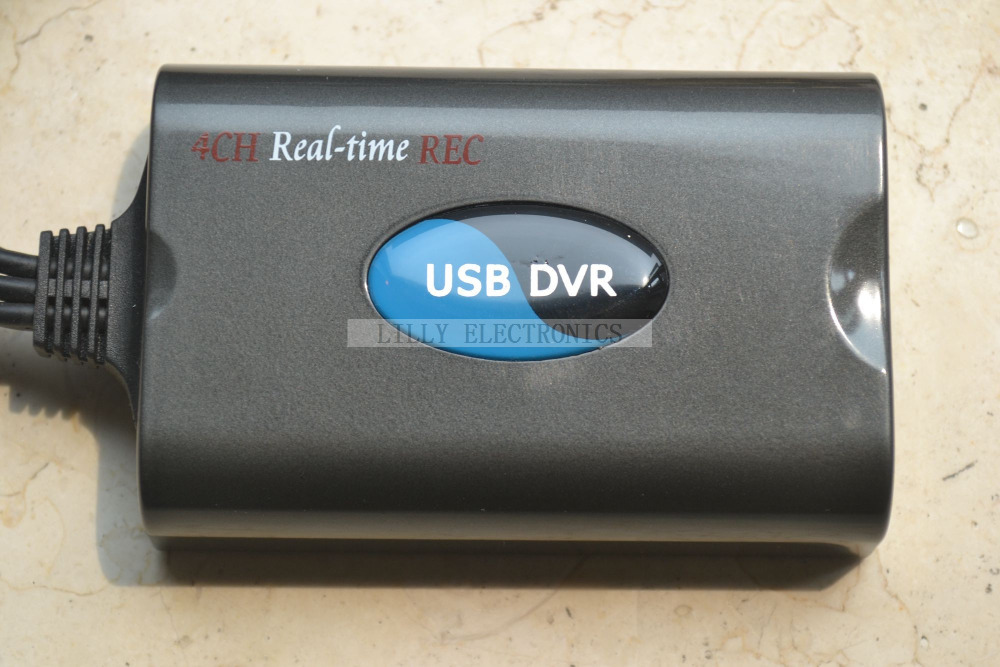

4CH Video 2CH audio USB CCTV Capture DVR box card!! Real time monitor!!
4 CHANNEL USB 2.0 DVR is the safety system of ideal design for home/ office/shop guard or baby care purpose, Users can do their own security by easy installation.
It is the cost-effective solution to replace commercial VCR tape recorder, which also supports stable digitize video record and easy manages the recorded data via index of date and time. That's it, makes your life more safety and easier..


Key Feature

Schedule record mode.
Motion detection mode.
Sensor alarm record mode.
Recycling record mode.
P.T.Z control function.
Users management.
Multi-channel display.
Support 320x240 / 640x480 (NTSC), 352x288 / 704x576(PAL) standard resolutions.
Image color adjustable for each channel, including contrast, lightness, hue and saturation.
MPEG4 compression format, greatly reduce HDD usage.
Powerful video playing back functions, including playing back, pause, stop, fast-forward, single-frame play and image capture.
Support advanced search mode. Users can search by date/time, camera, record mode, and random combination of the three methods.
Support recorded files backup, delete by date/time, camera.
Convenient to extend system functions by software upgrade.
CPU and storage resources saving by advanced technology.
Remote Surveillance and P.T.Z control through LAN, Intranet, and Internet.
Support alarm pre-record.
Support buzzer, email alarm out.
Can greatly decrease fragmented files while using NTFS partition.
User-friendly graphical user interface.

Specifications:

Format: PAL/NTSC
Resolution: 640x480 (NTSC), 352x288 / 704x576(PAL),
Maximum Frame rate per channel: 25 fps (PAL), 30 ftp (NTSC)
Screen set: resolution 1024×768, color quality 16 bits or 32 bits
Compression code rate: 50kbps - 1.2Mbps
Data format: MPEG4


System Requirements:

P4 1.7GHz CPU or above
80G HDD and 256MB RAM, or above
VGA card with 64MB memory
Windows 2000/XP/Vista/Windows 7 32/64bit
Microsoft DirectX 9.0 or above
One available USB 2.0 port

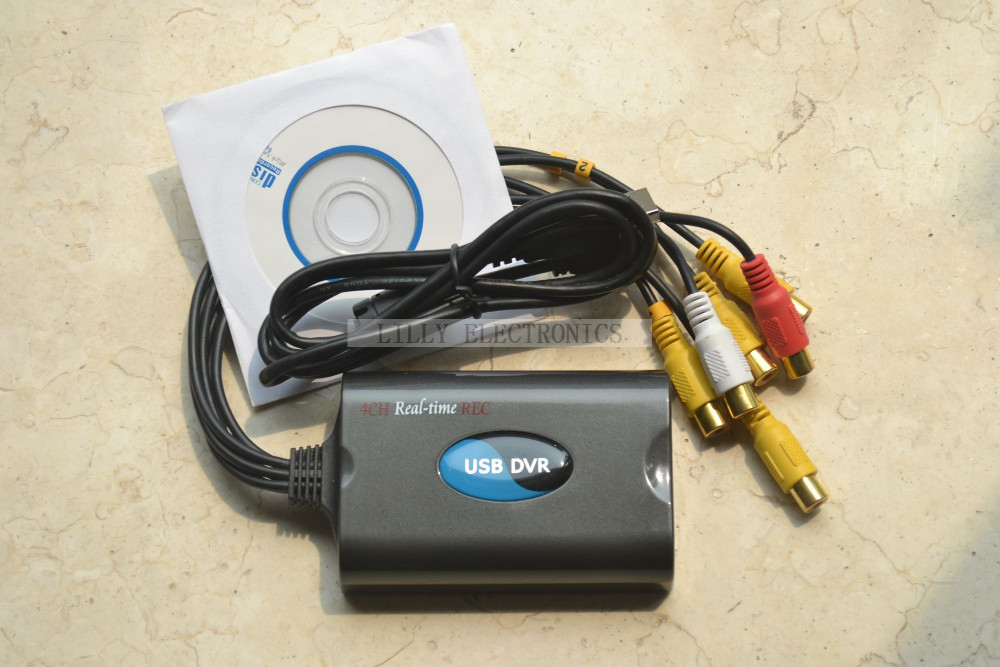

Package

1 x 4 Channel USB DVR

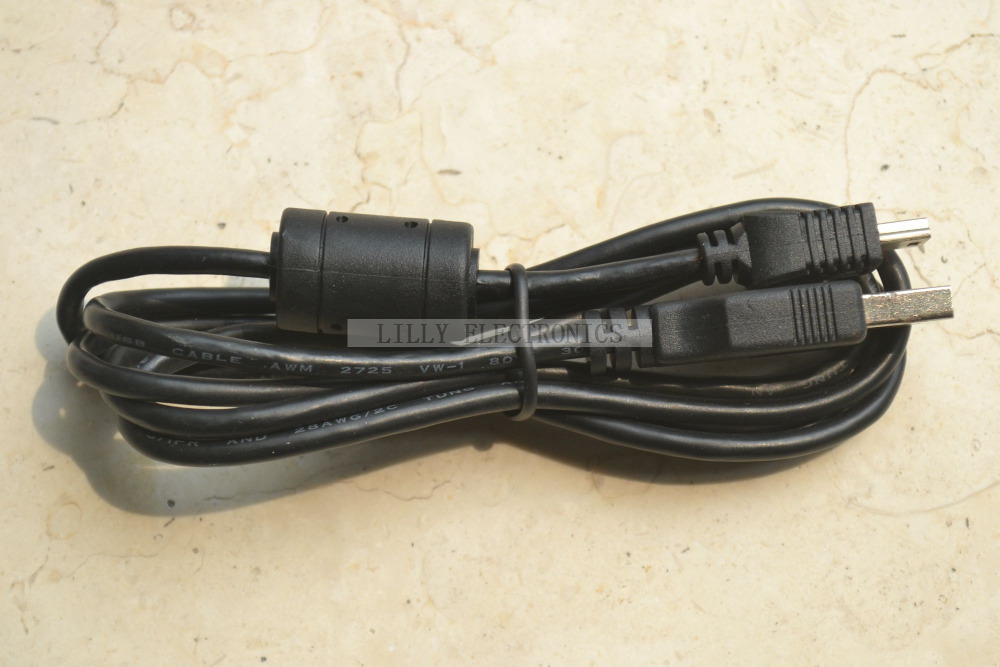

1 x USB Connection Cable

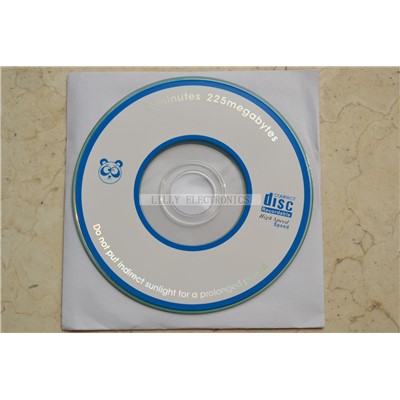

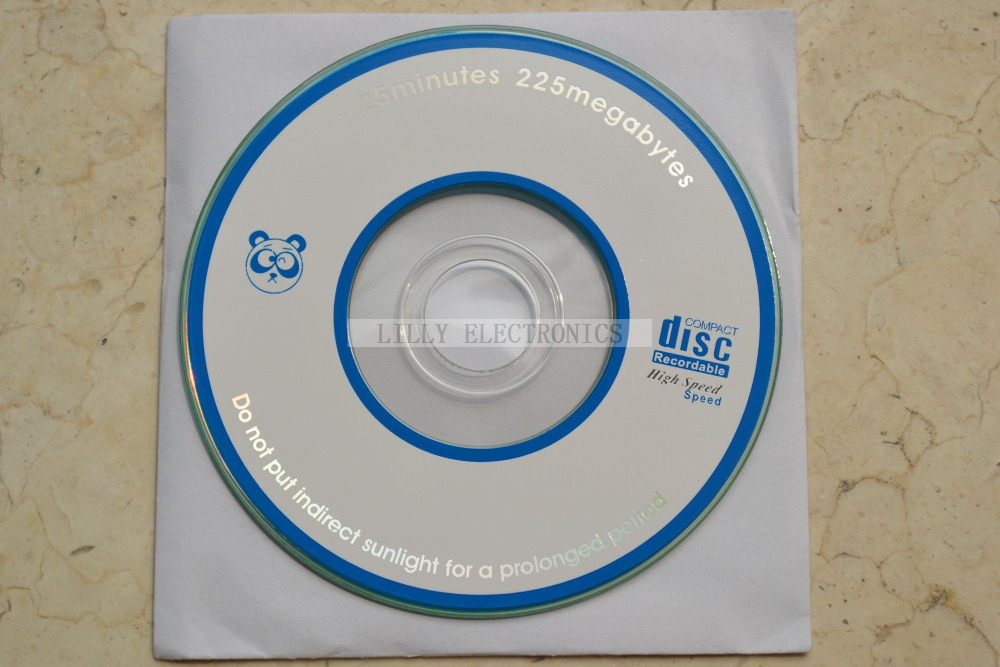

1 x Software and CD Driver
