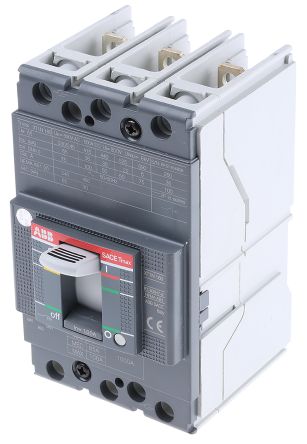

3P 100 A MCCB Molded Case Circuit Breaker, Breaking Capacity 36 kA, DIN Rail Mount Protecta XT1N

Price:
USD 292.37 / Each    324.86     -10%
MOQ:
1 Each

Country of origin: China

The estimated delivery time is 21 - 28 days after payment.

Free Shipping for orders over USD 500.00

Payment: Bank transfer

Third party financial regulators will be involved in the transaction process.

Image SKU No. MPN Brand
10038533 1SDA067416R1 ABB
Width Current Rating Rated AC Voltage Mounting Style Rated DC Voltage Series Breaking Capacity Range Number of Poles Length Depth
130mm 100 A 690 V DIN Rail Mount 500V XT1N 36 kA Protecta 3 76.2mm 70mm
Unit Price Purchase Count
MOQ: 1 Each
USD 292.37 / Each
- +
Each
Please add item quantities to the selected List
Add to Cart Buy now

0Each

USD 0.00

Market rebate 2.00 元

ECVV Industrial Products Mall

0086 755 33941239 support@ecvv.com

Contact Us

  • Product Description
  • Parameter
  • Service Process
  • Guarantee
  • Cumulative Repurchase

Width 130mm
Current Rating 100 A
Rated AC Voltage 690 V
Mounting Style DIN Rail Mount
Brand ABB
Rated DC Voltage 500V
Series XT1N

More Parameter >

Parameter

Width 130mm
Current Rating 100 A
Rated AC Voltage 690 V
Mounting Style DIN Rail Mount
Brand ABB
Rated DC Voltage 500V
Series XT1N
Breaking Capacity 36 kA
Range Protecta
Number of Poles 3
Length 76.2mm
Depth 70mm
Tmax PV is the latest T Generation product: from 160 to 250 A , up to 1100 Vdc.,Tmax PV possesses IEC 60947-3 and IEC 60947-2 certification.,Tmax PV includes 6 different sizes: from the compact T1(which can be mounted on DIN rail) to the high-performance T7, available in the two versions, with lever operating mechanism and motor operator.,Tmax PV reaches a rated insulation voltage up to 1150 Vdc.,Tmax PV includes all the advantages of the T Generation:,excellent performance-dimensions ,vast and complete range of accessories for all requirements,complete remote control,Tmax PV operating devices are the first moulded-case switch-disconnectors for high direct voltage available on the market.,They are of certain interest for all types of photovoltaic installation, where they are the ideal answer for every disconnecting requirement.,Tmax PV moulded-case switch-disconnectors can be used in both parallel switchgears and inverter switchgears.,When used in inverter switchgears, Tmax PV makes it absolutely simple to coordinate the direct side and the alternate side: the same circuit-breaker can be used for both the DC and AC sides.,Moreover, Tmax PV equipment, which are manufactured and tested in accordance with Standard IEC 60947-3, can be used for mixed resistive-inductive loads in all low voltage installations with 1100 Vdc and 1600 A rated current.
